Description

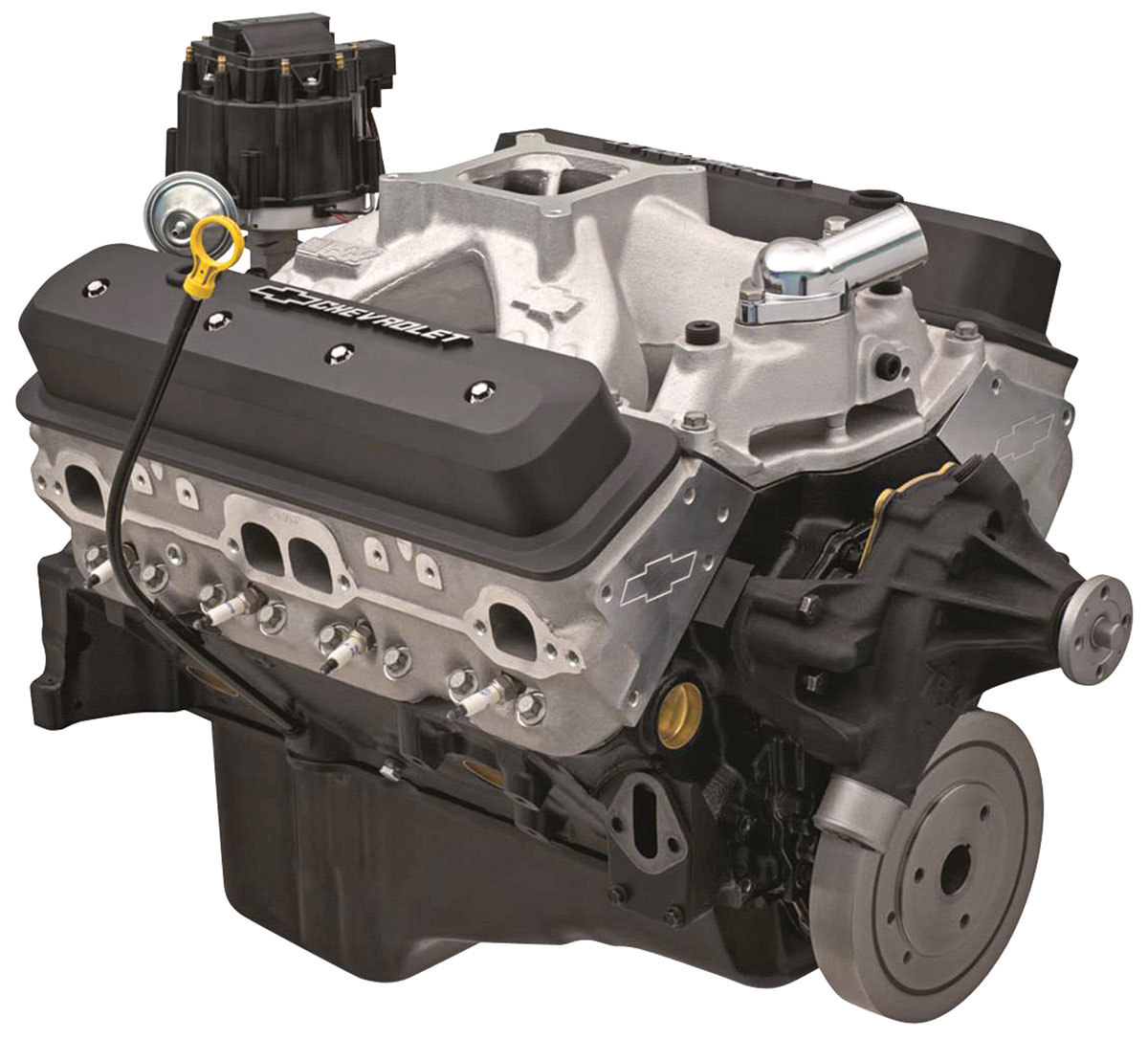

Newest 350 crate engine from GMThe new ZZ6 350 crate engine from Chevrolet is one of the most powerful 350-based crate engines from the “ZZ” lineup. Rated at 405 horsepower and 406-ft./lbs. of torque, it uses aluminum Fast Burn cylinder heads equipped with LS-style beehive valve springs for greater high-rpm performance. This crate engine is also built using a cast-iron block with four-bolt mains, along with a forged steel crankshaft, and an aggressive hydraulic roller camshaft. The ZZ6 can be ordered in both a base version that comes with an intake manifold and distributor, as well as a turn-key version that comes complete from oil pan to carburetor, flexplate to accessory drive.Technical Information:Horsepower: 405 @ 5600 rpmTorque: 406-ft./lbs. @ 4600 rpmMax recommended rpm: 5800Compression ratio: 9.72:1Block: 10243870 cast-iron, 4-bolt main capsCrankshaft: 12670965 forged steelConnecting rods: 10108688 forged powder steelPistons: 10159436 hypereutectic aluminumCamshaft: 10185071 hydraulic roller, lift .474″ I, .510″ E, duration @ .050″ 208 I, 221 ECylinder heads: 19300955 Fast Burn aluminum 62cc combustion chambersIntake valves: 2.000″Exhaust valves: 1.550″Rocker arms: 19210724 1.5:1 aluminum rollerIntake manifold: 12496822 single-plane aluminumDistributor: 93440806 HEIRecommended Fuel: PremiumIgnition timing: 36 total @ 4000 rpm
