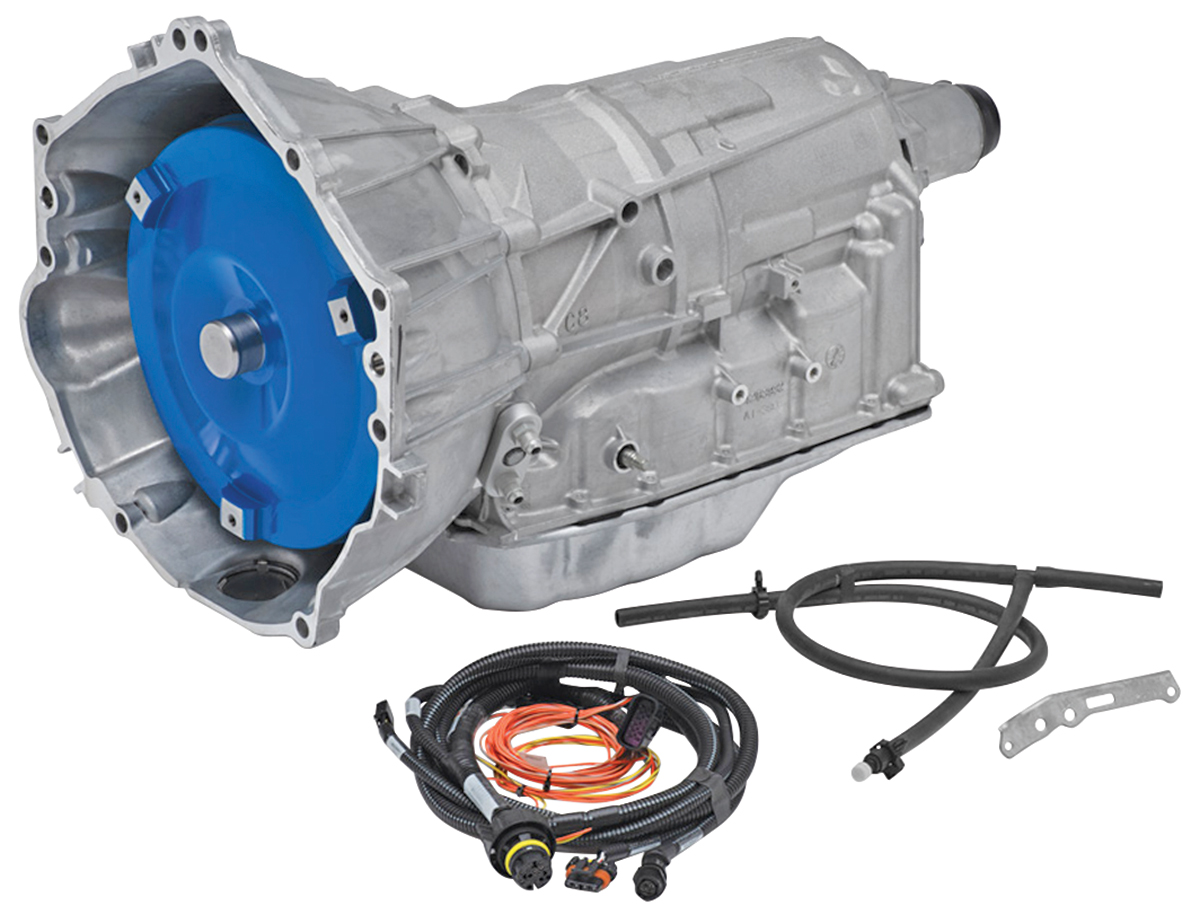

Transmission, GMPP SuperMatic 6L80-E 6-Speed Auto, 2400-2800 Stall

Description

Developed with upgraded internal components, Chevrolet Performance’s SuperMatic 6L80-E six-speed automatic transmission offers an exceptional torque rating of 664 lb.-ft.—a 45-percent increase over regular-production versions of the six-speed automatic. A deep 4.02:1 first gear enables strong launch performance, while the 0.67:1 top gear supports balanced performance on the highway. It is designed for use with Chevrolet Performance’s LS and LSX crate engines, as well as LT1 and LT4 crate engines.Additional highlights:•Electro/hydraulic controls with clutch-to-clutch shifting•Output torque rating: 650 lb.-ft.•Gear ratios: 1st: 4.02, 2nd: 2.36, 3rd: 1.53, 4th: 1.15, 5th: 0.85, 6th: 0.67•Lightweight die-cast aluminum case contributes to dry weight of approximately 195 lbs.•Uses DEXRON VI premium fluid•Does not include dipstick•Includes truck-style production oil pan (use Shallow Pan Kit P/N 19418242 for increased ground clearance)•Includes production vent tube assembly•Kit includes controller and harness, with calibrations for street and track; harness also includes paddle-shift connection•Kit includes transmission bulkhead connector that supports aftermarket gear indicator displays, electronically controlled shifters and more•Chevrolet Performance-specific design includes provisions for an aftermarket transmission cooler, including -6 AN fittings
