Description

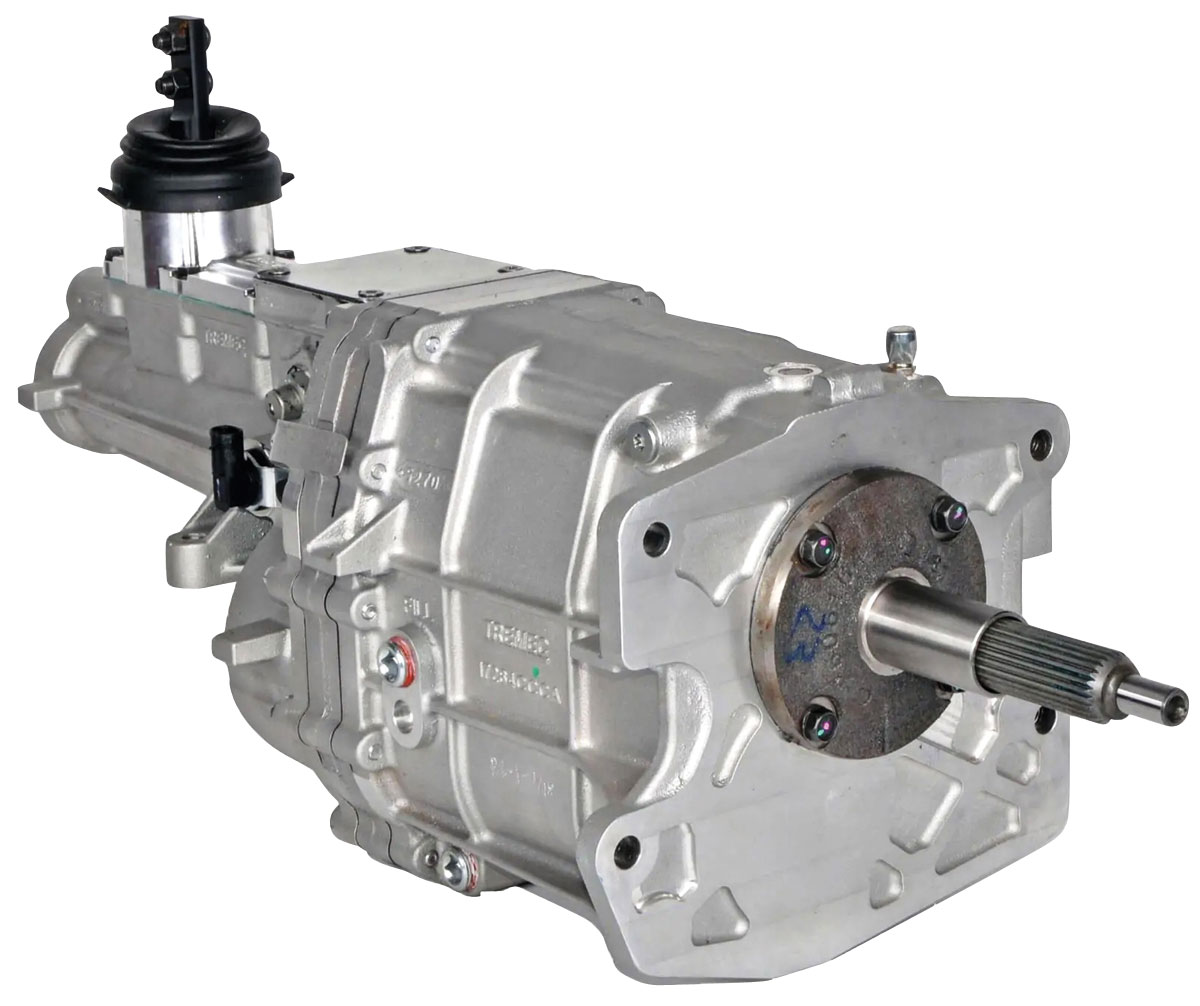

Compact DesignDesigned, tested and built specifically for the aftermarket TKX 5-Speed Manual Transmission Features and Benefits⢠Capable of engine speeds of 8,000 RPMs with shifts at 7,500 RPMs.⢠Designed for multiple applications with three shifter locations. Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications.⢠Increased case strength with three-piece aluminum housing provides outstanding structural stiffness (includes main case, intermediate plate and rear extension). Gaskets at all flanges simplifies installation and eliminates fluid leaks.⢠Superior shift-ability through use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon.⢠Noise, vibration and harshness (NVH) minimized with gear layout to best control stress levels. All gears supported by caged needle bearings to reduce end play on the gears.⢠All gears and shafts made from special grade steel (ASTM 4615) providing increased torque carrying capacity.⢠Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp shifts.⢠Robust design with internal three-rail shift system and steel shift forks.⢠Wide gear width increases gear life and torque capacity.⢠Built-in reverse light switch and cruise control safety switch.Tech Specs:26-spline input shaft.31 spline output.All gears and shafts made from special grade steel (ASTM 4615)600ft-lb Constant Load Rated
